Binocular Loupes


An enlarged view simplifies your work. What you can’t see you can’t work on.
The advantages of Riester’s binocular loupes are improved working posture, reduced strain on the eyes and an even clearer view with K-LED lighting. Designed for comfort and performance

Patient comfort - More distance during treatment makes patients feel visibly better and more relaxed.

Several magnification grades
Riester loupes perfoem in accordance with your requrements. Multiple magnification levels enable you to see more, spot problems earlier and offer even higher levels of precision treatment.

 Product data sheet as PDF download


SuperVu Galilean System
SuperVu Galilean System
SuperVu Galilean System
2.0, 2.5x and 3.0x magnification.

The true benefit of this system is ease of use.
Movement whilst maintaining focal clarity is possible due to superior depth of field. The light-weight aluminium bar with individual pupillary adjustment provides the mounted loupes with stability and optimal focal alignment, eliminating headache and eyestrain. Ideal for ocular and dental examinations as well as plastic surgery and veterinary professionals

Fig. with spectacle frame


SuperVu Hi-Res Galilean System
SuperVu Hi-Res Galilean System
3.0x magnification.

With this system, Riester provides a high resolution loupe, which far surpases any previous standards. This 5-element loupe offers triple magnification with a 15% increased field of view and a visually flat field from edge to edge.

Fig. with brow band


XL Advantage System
XL Advantage System
3,5x, 4,5x and 5,5x magnification

Higher magnification for advanced surgical precedures. High prismatic quality ensures true image. Edge to edge clarity and precise colur rendition are ideal for intricate applications.

The XL precision lenses are treated with non-reflecting protective coating to achieve an excellent image.

Fig. with spectacle frame


K-LED
SuperVu Hi-Res Galilean System
Provides many hours of white light

The K-LED brow lamp provides homogeneous light with a brightness of uo to 18.000 Lux. The 3W LED is coaxilly attached to the frame and operates with a li-ion battery pack, enabling permanwnt operation of up to approx. 4 hours.

Fig. with spectacle frame and loupe. K LEDwith charger


SuperVu accessories
K-LED

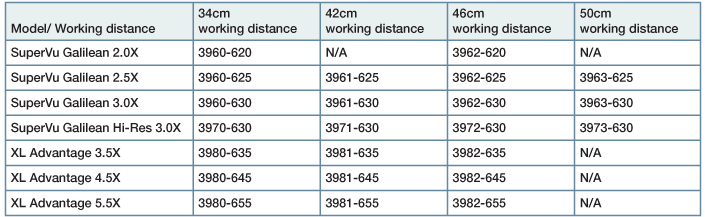

The binocular loupes are available in the following combinations (order spectacle frame or brow separately)

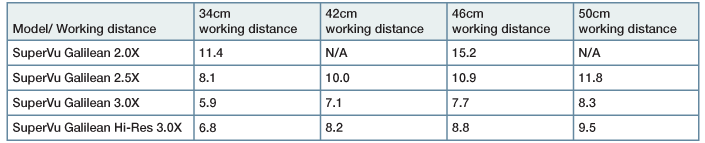

Field of view(in cm Ø):
The SuperVu Galilean binocular loupes offer excellent optical features with respect to the field of view: (+/-10%)

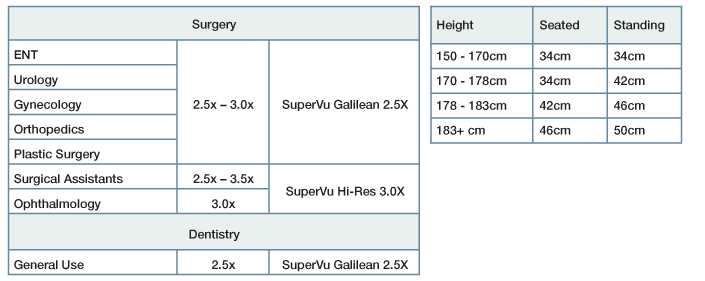

Applications:

The right magnificat for your application

Working distance:

Determine the perfect working distance for you
loupe based on size
